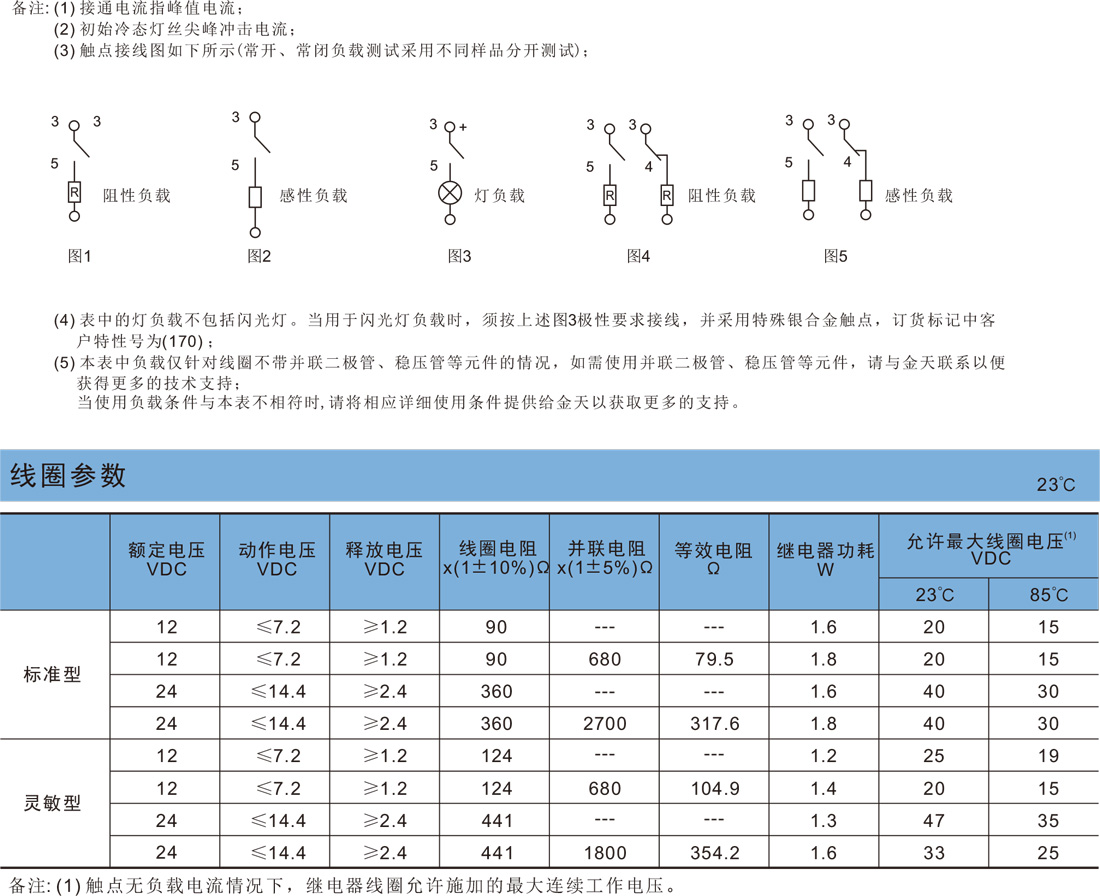

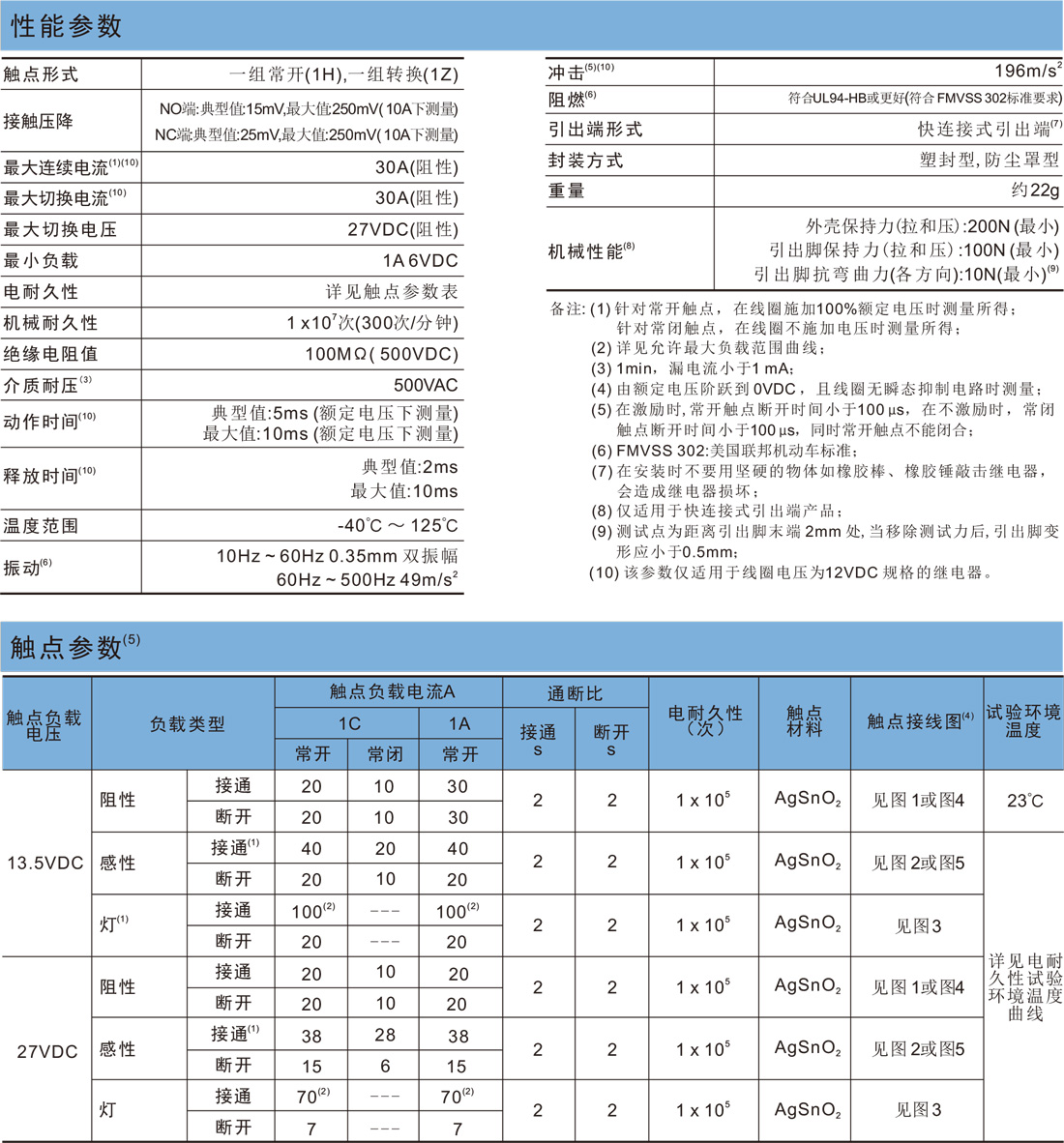

| Contact arrangement | 1A, 1C | Operate time10) | Typ: 5ms (at nomi. vol.) Max.: 10ms (at nomi. vol.) |
| Voltage drop(initial) | NO: Typ.: 1 5mV, Max: 250mV(at 10A) NC: Typ. : 25mV, Max: 250mV(at 10A) | Release time10) | Typ.: 2ms Max.: 10ms |
| Max. continuous current1)10) | 30A(Resistive) | Ambient temperature | -40°C to 125°C |
| Max. switching current10) | 30A(Resistive) | Vibration resistance6) | 10Hz to 60Hz 0.35mm DA 60Hz to 500Hz 49m/s² |
| Max. switching voltage | 27VDC(Resistive) | Shock resistance5)10) | 196m/s² |
| Min. contact load | 1A 6VDC | Flammability6) | UL 94-HB or better(meets FMVSS 302) |
| Electrical endurance | See "CONTACT DATA" | Termination | QC7) |
| Mechanical endurance | 1 x107 ops(300ops/min) | Construction | Plastic sealed, Dust protected |
| Initial insulation resistance | 100MΩ (at 500VDC) | Unit weight | Approx. 22g |
| Dielectric strength3) | 500VAC | Mechanical data8) | cover retention (pull&push): 200N min terminal retention(pull&push): 100N min terminal resistance to bending (front&side):10N min.9) |

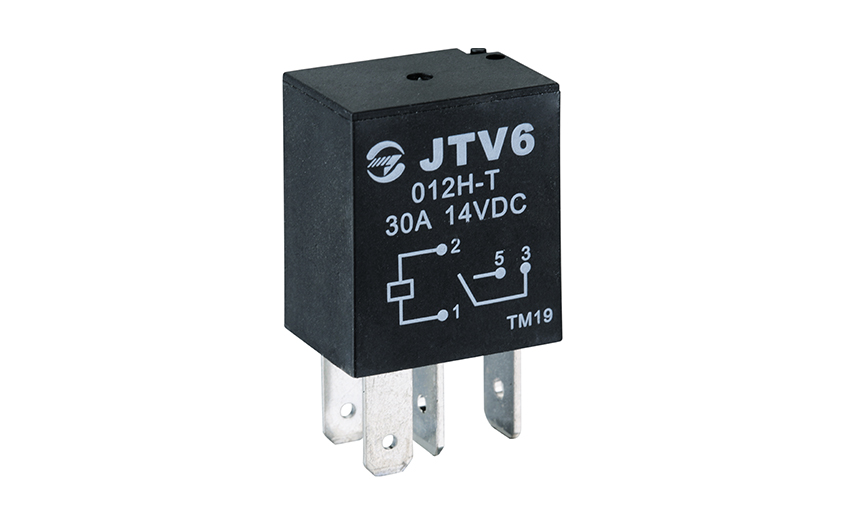

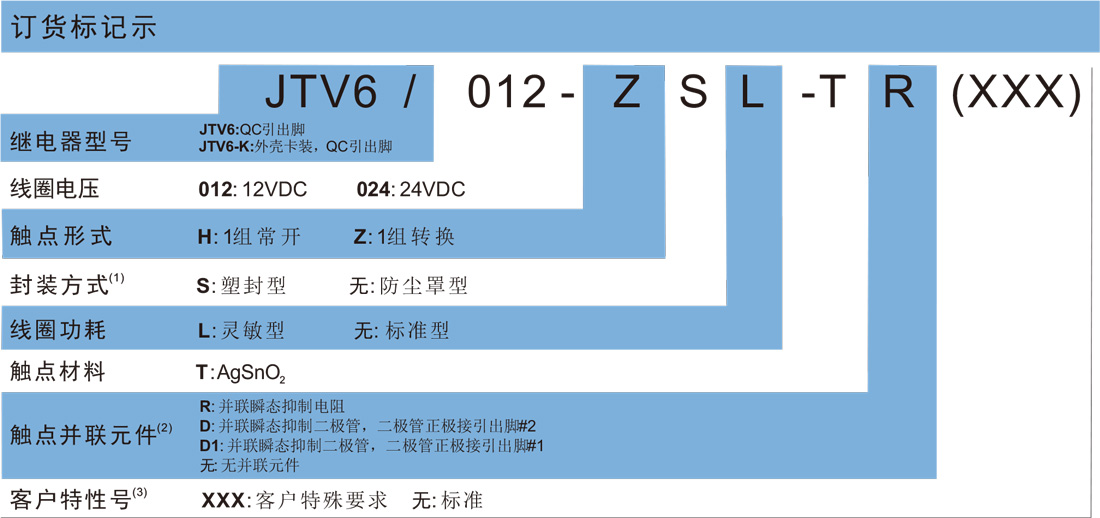

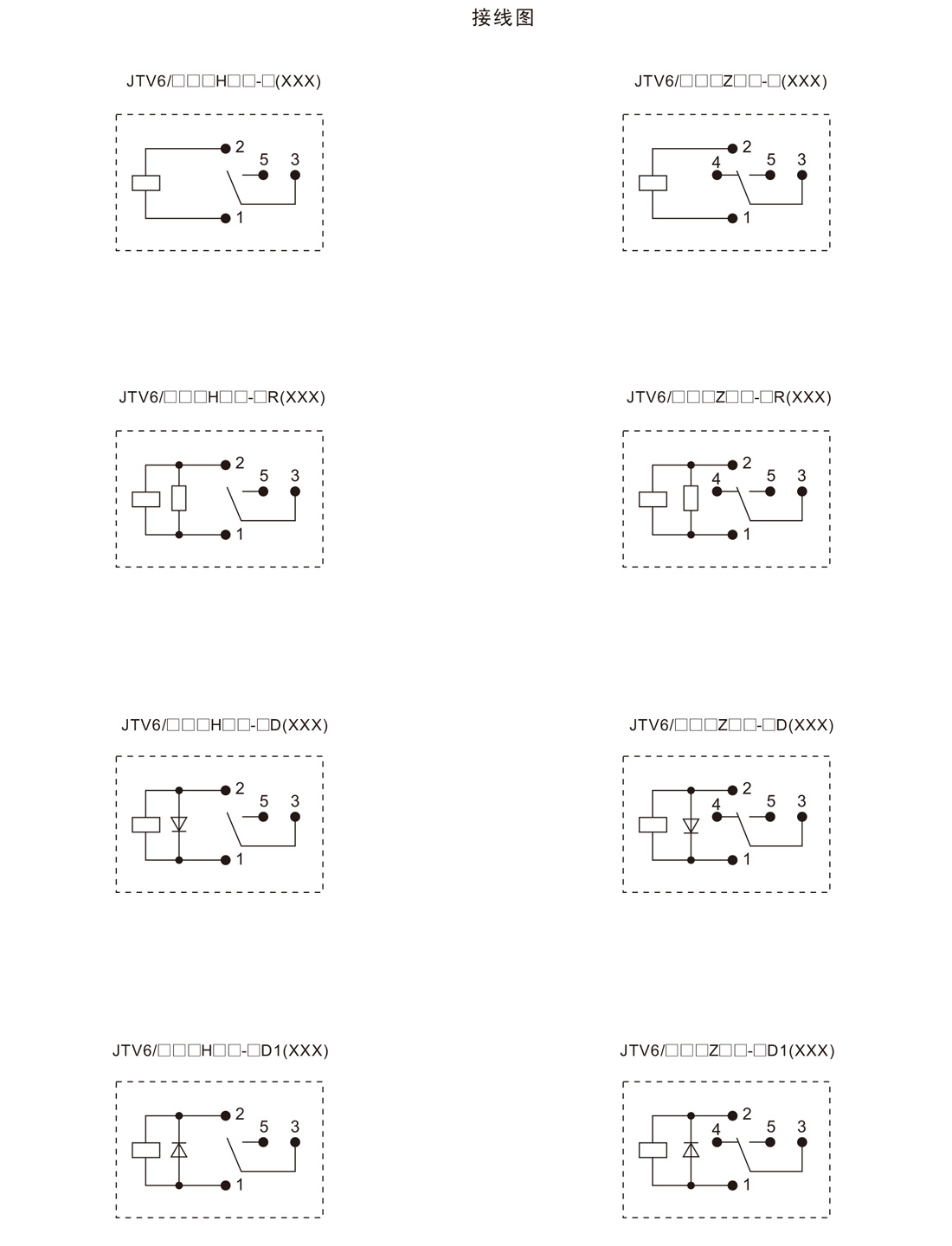

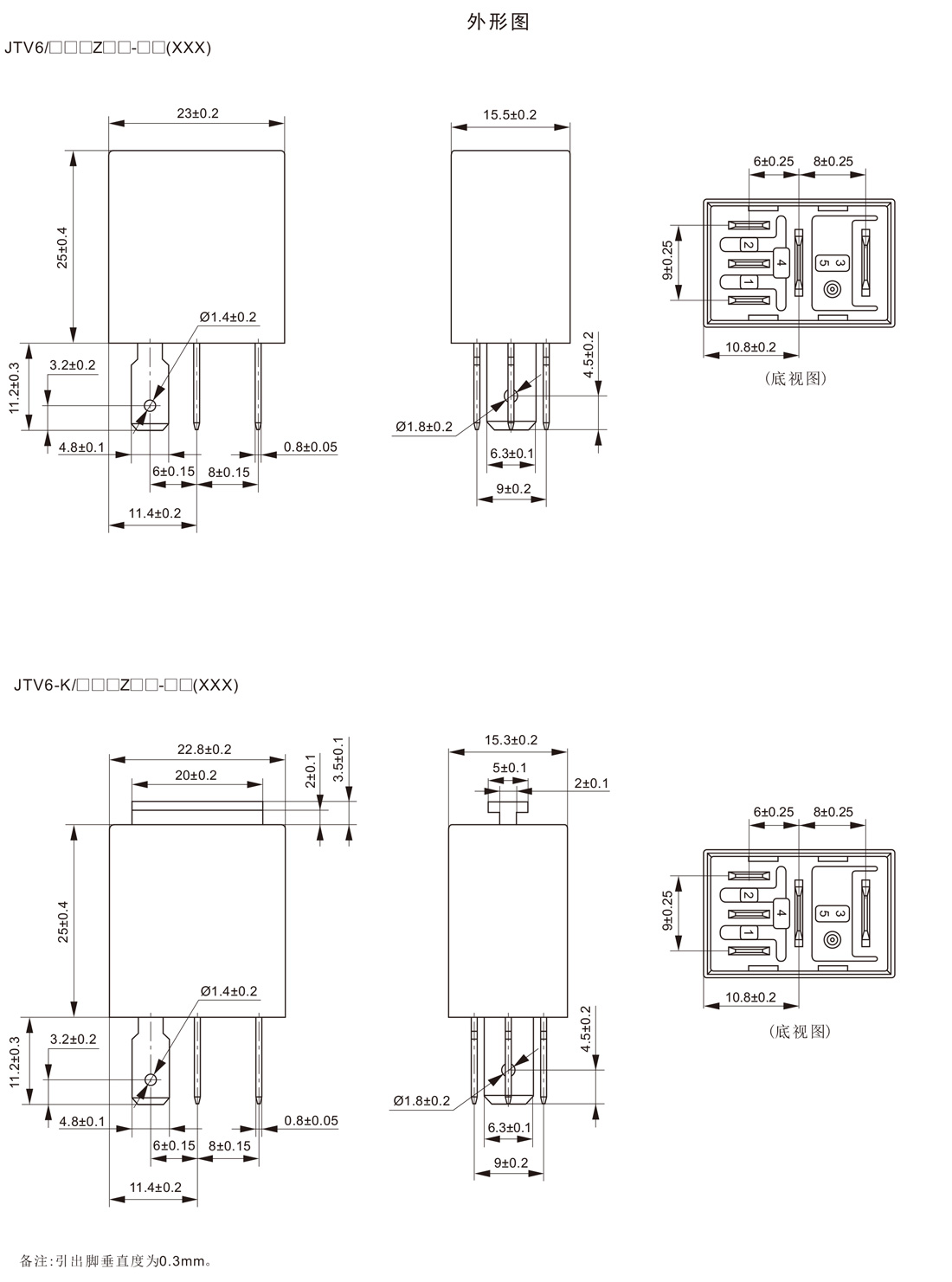

The Headlamp Relay with the part number JTV6 is a type of automotive relay that is used to control the high and low beam headlights in a vehicle. This relay is designed to handle high current and voltage levels and provide a safe and reliable way to switch the headlights on and off.
