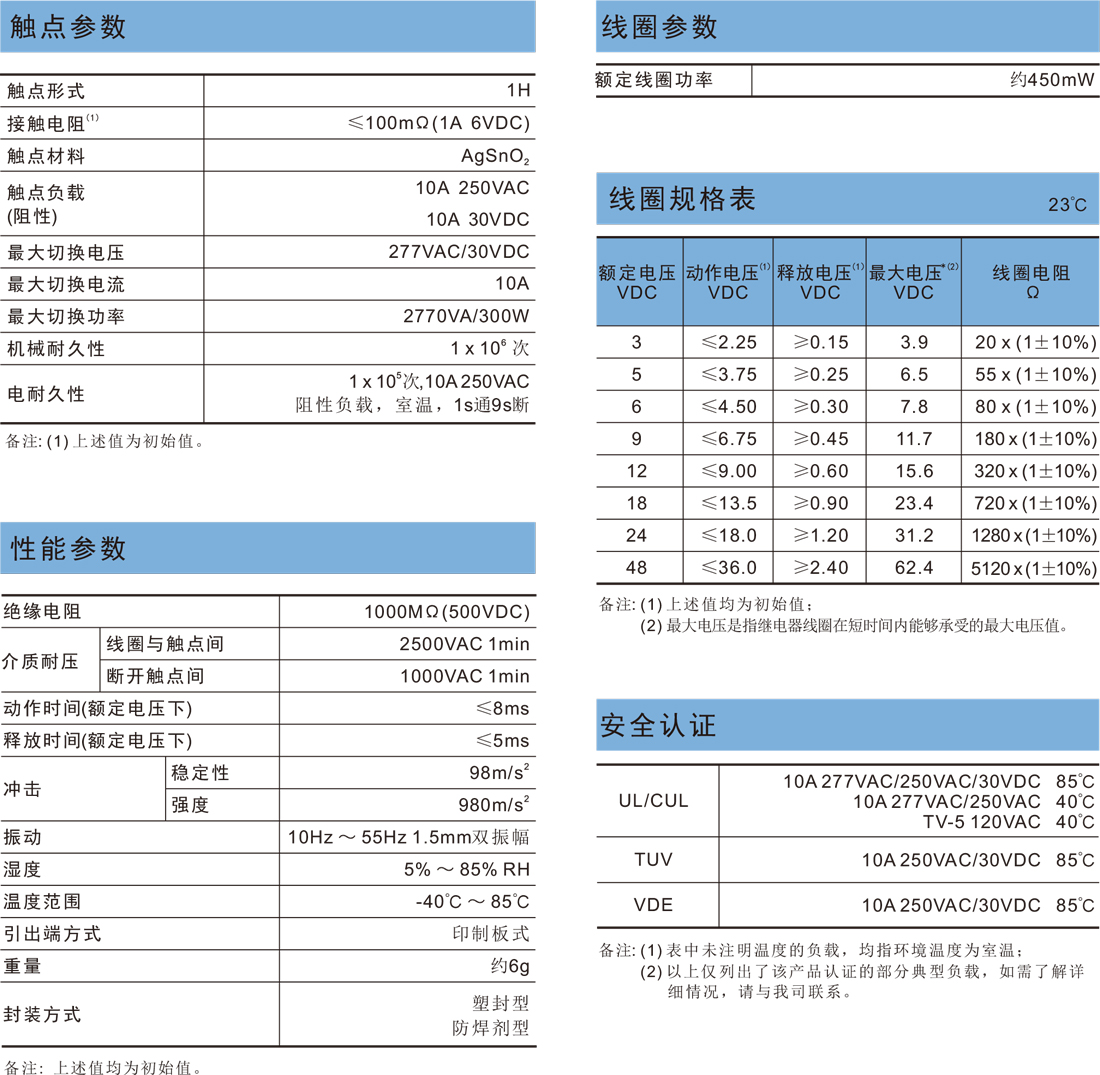

| Insulation resistance | Dielectric strength | Operate time(at nomi. volt.) | Release time(at nomi. volt.) | Shock resistance | Vibration resistance | Humidity | Ambient temperature | Termination | Unit weight | Construction | ||
| Between coil & contacts | Between open contacts | Functional | Destructive | |||||||||
| 1000MΩ (at 500VDC) | 2500VAC 1min | 1000VAC 1min | 8ms max. | 5ms max. | 98m/s² | 980m/s² | 10Hz to 55Hz 1.5mm DA | 5% to 85% RH | -40°C to 85°C | PCB | Approx.6g | Plastic sealed, Flux proofed |
10A switching capability
1 From A configurations
Sumbminiature, standard PCB layout
Plastic sealed and flux profed types
Product in accordance to IEC 60335-1 available
UL insulation system: Class F

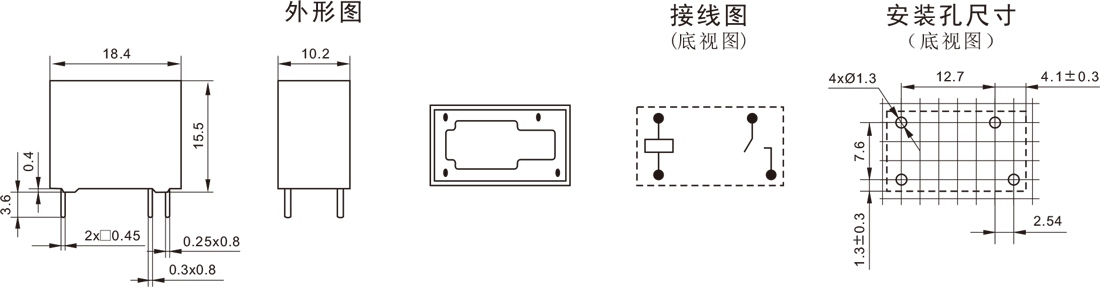

Outline Dimensions: (18.4 x 10.2 x 15.3)mm
