  • 40A switching capability

  • Heavy load up to 7200VA

  • PCB coil terminals, ideal for heavy duty load

  • Plastic sealed and dust ptotected types available

  • 4kV directric strength(between coil and contacts)

  • UL insulation system: Class F

  • Environmental friendly product (RoHS compliant)

  • Outline Dimensions: (32.4 x 27.3 x 27.8)mm

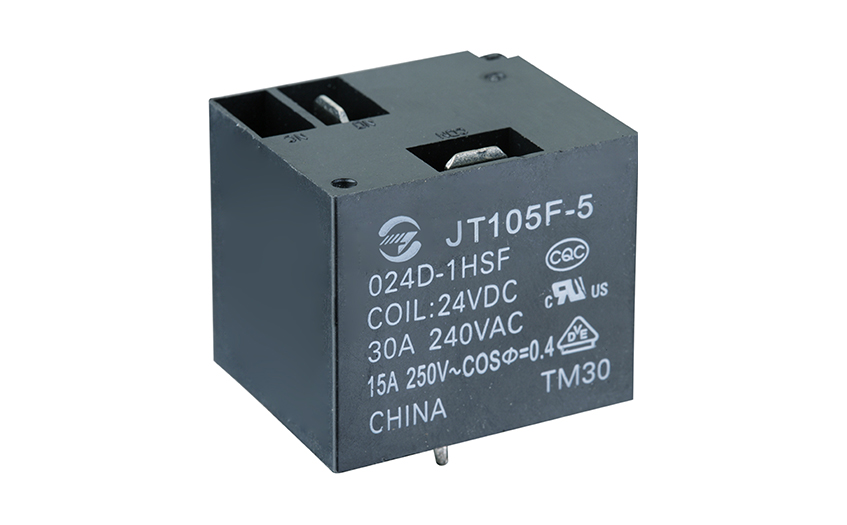

Miniature High Power Relay JT105F-5 Advantages

01
The JT105F-5 relay has a high power switching capacity of up to 10A at 250V AC or 30V DC, making it ideal for switching high power loads.
02
The JT105F-5 relay has a miniature size, which makes it ideal for applications where space is limited. Its small size also makes it easy to integrate into existing systems.
03
The JT105F-5 relay has low power consumption, which makes it ideal for use in battery-powered applications. Its low power consumption also helps reduce energy costs.
04
The JT105F-5 relay has a long electrical life of up to 100,000 operations, which ensures high reliability and durability.

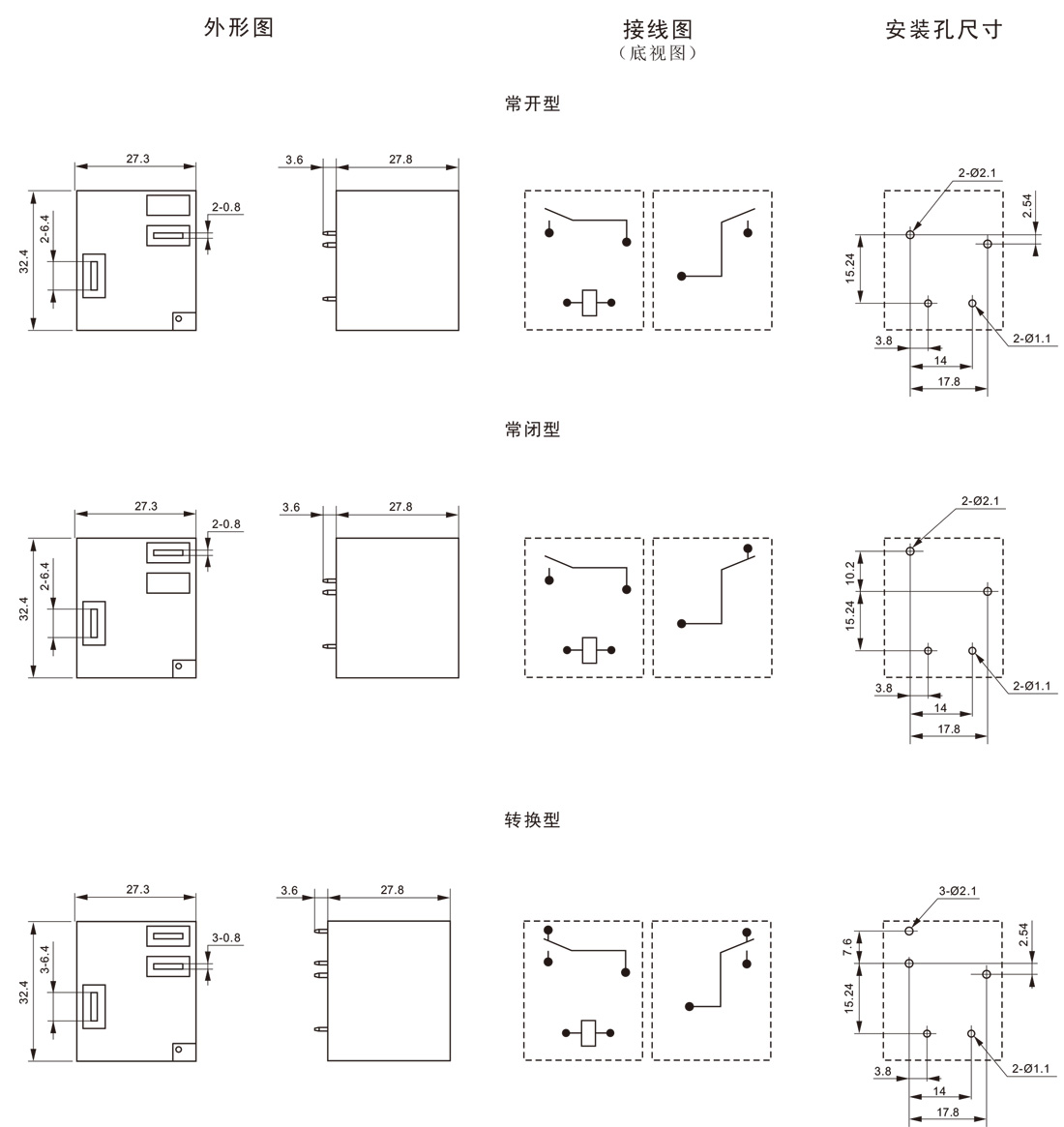

Dimensions of Miniature High Power Relay JT105F-5

Dimensions of Miniature High Power Relay JT105F-5

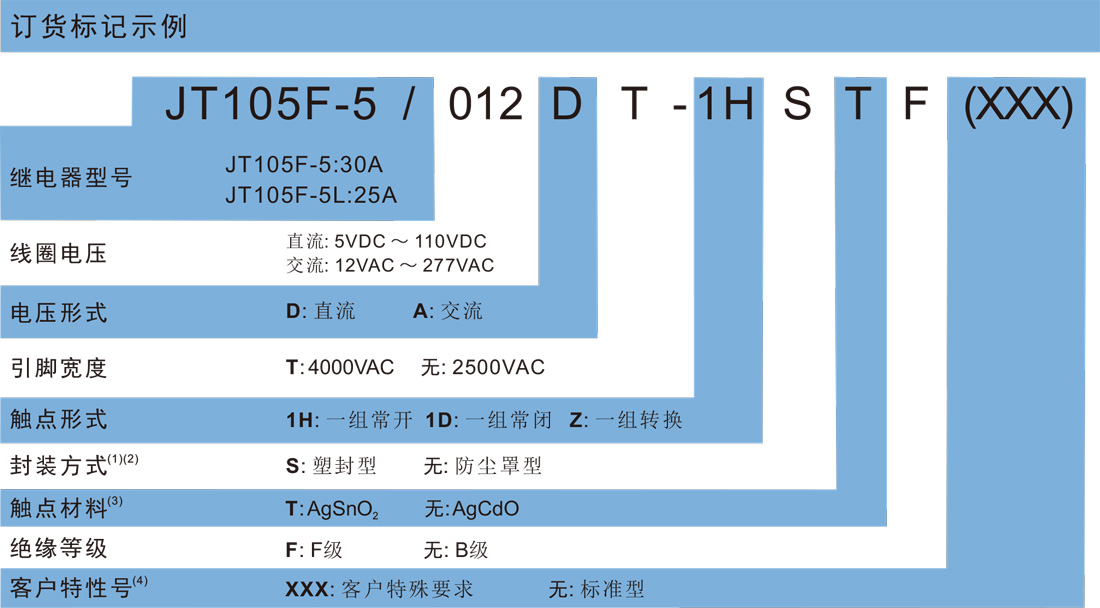

Miniature High Power Relay JT105F-5 Order Mark

Miniature High Power Relay JT105F-5 Order Mark
