  • 30A switching capability

  • PCB coil terminals, ideal for heavy duty load

  • 2.5kV dielectric strength (between coil and contacts)

  • Plastic sealed and dust protected type available

  • UL insulation system: Class F

  • Environmental friendly product (RoHS compliant)

  • Outline Dimensions: (32.2 x 27.5 x 19.8)mm

  • Products with QC 3.2mm pin diameter are available

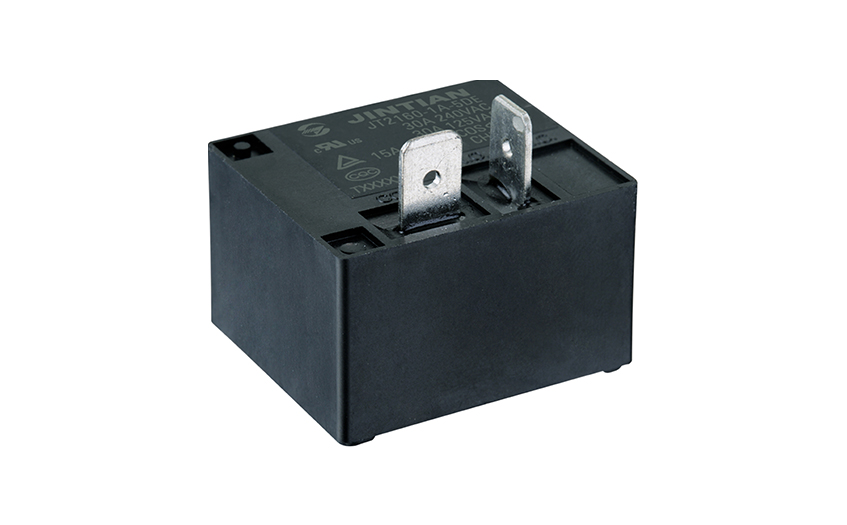

Miniature High Power Relay Jt2160 Application

01
Industrial Control Systems: The JT2160 relay is commonly used in industrial control systems for switching high voltage and high current loads. It is ideal for use in automation systems, motor control systems, and power distribution systems.
02
Power Supplies: The JT2160 relay is also used in power supplies, where it is used for switching high current loads. It can be used in both AC and DC power supplies.
03
Home Appliances: The JT2160 relay is used in various home appliances, such as air conditioners, refrigerators, washing machines, and other high power appliances.
04
Automotive Applications: The JT2160 relay is used in automotive applications for switching high current loads, such as in electric power steering systems, engine cooling systems, and other high power systems.
05
Renewable Energy Systems: The JT2160 relay is used in renewable energy systems, such as solar and wind power systems, for switching high voltage and high current loads.

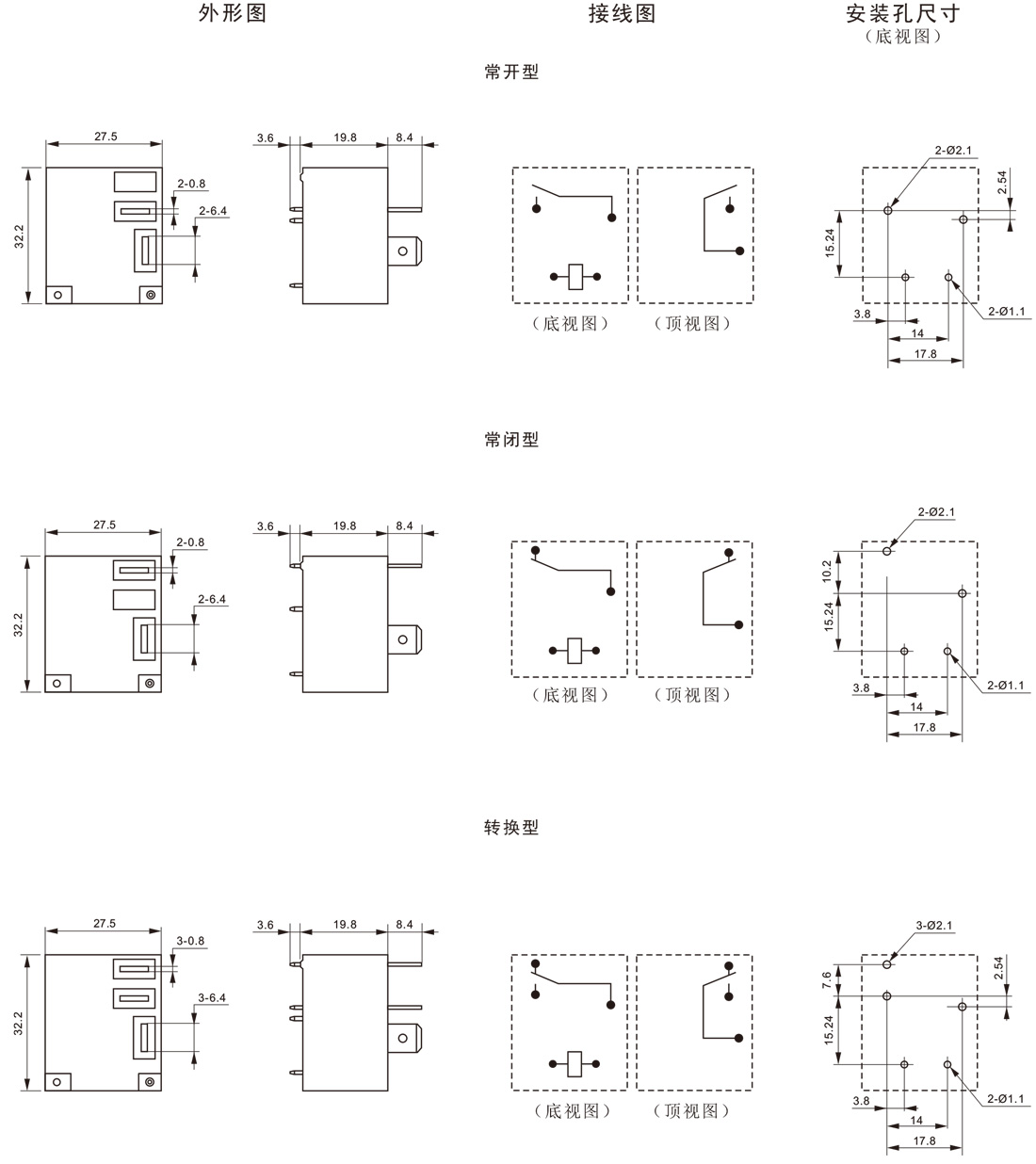

Dimensions of Miniature High Power Relay JT2160

Dimensions of Miniature High Power Relay JT2160

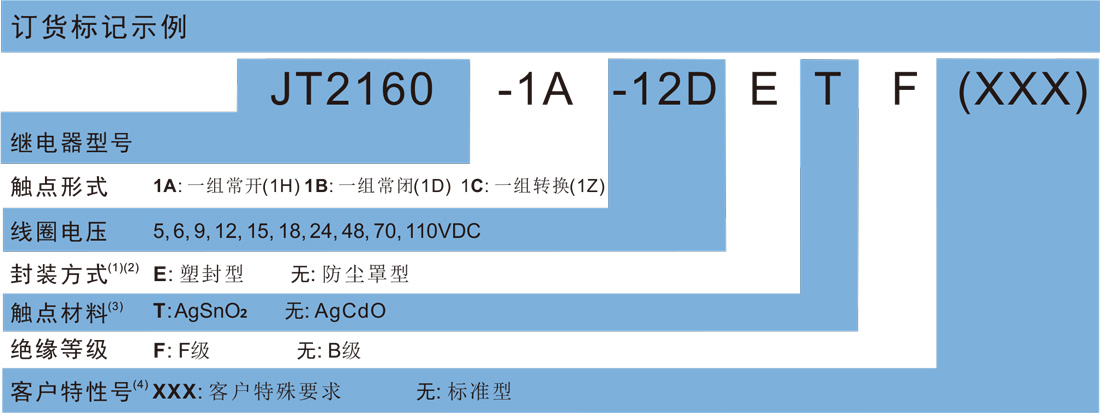

Miniature High Power Relay JT2160 Order Mark

Miniature High Power Relay JT2160 Order Mark
