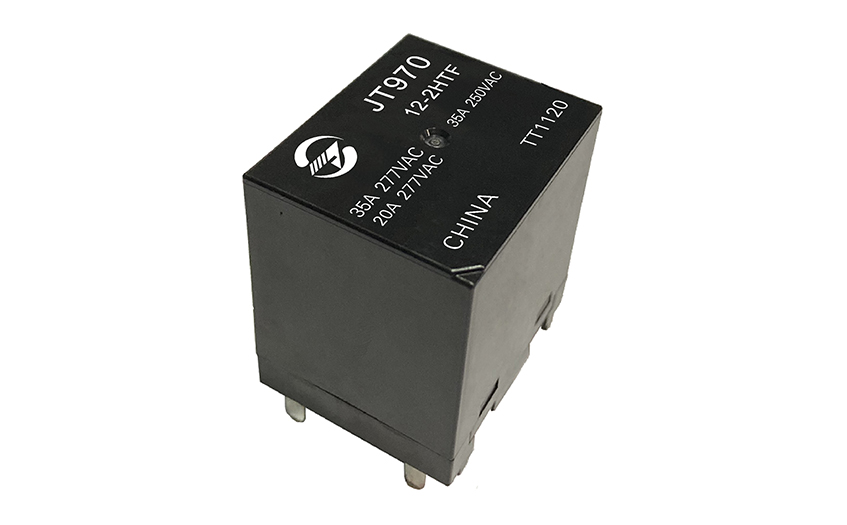

Solar Relay 12V JT970

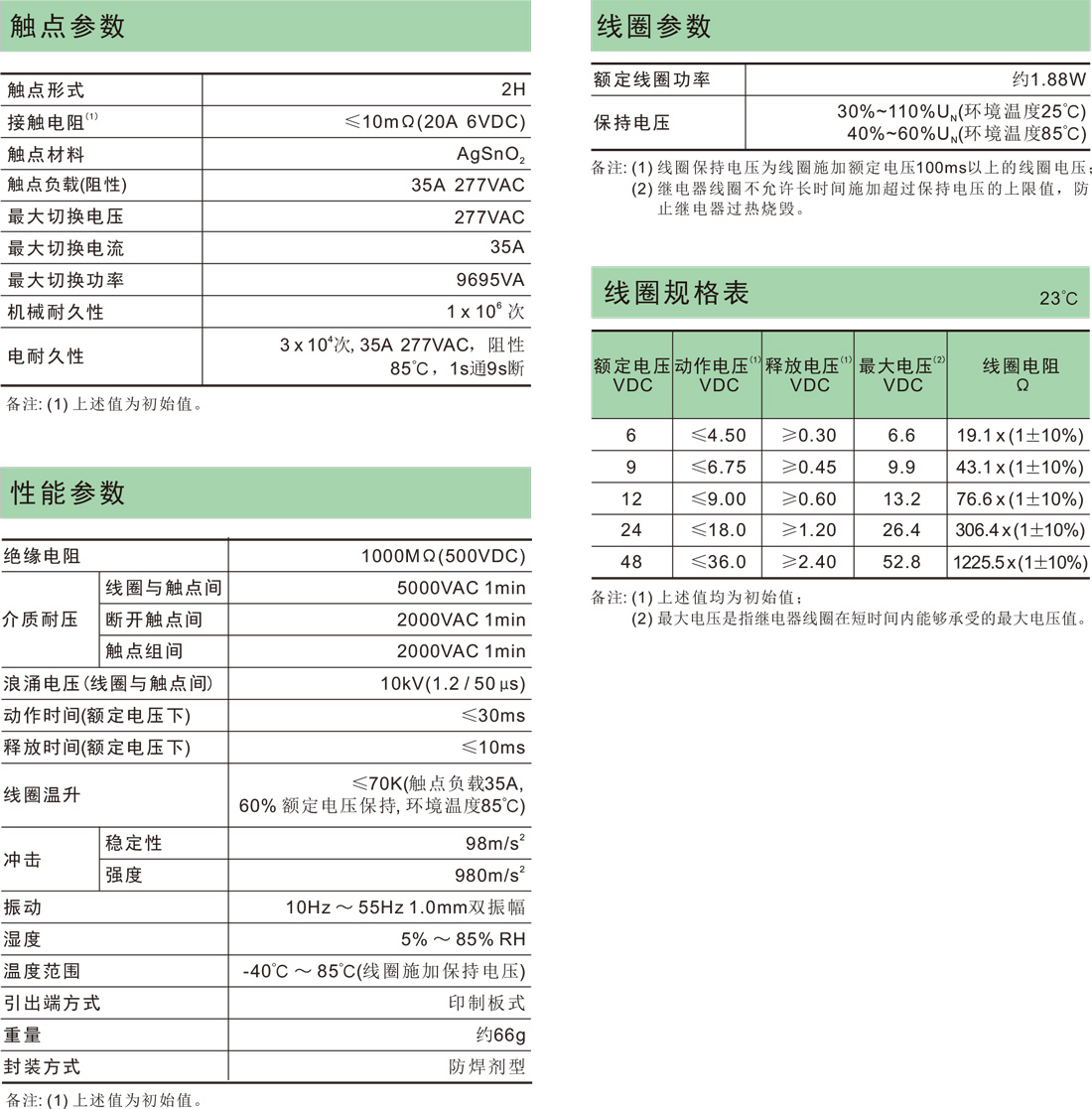

Insulation resistance

Dielectric strength

Surge withstand voltage

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Coil temperature rise (at nomi. volt.)

Shock resistance

Vibration resistance

Humidity

Ambient temperature

Termination

Unit weight

Construction

Between coil & contacts

Between open contacts

Between contacts sets

Functional

Destructive

1000M Ω (at 500VDC)

5000VAC 1min

2000VAC 1min

10kV(1.2/50μs)

30ms max.

10ms max.

70K max. (Contact load current 35A, rated voltage excitation 60%, at 85°C)

98m/s²

980m/s²

10Hz to 55Hz 1.5mm DA

5% to 85% RH

-40°C to 85C

PCB

Approx. 66g

Flux proofed

Contact

Descriptions of 12v ssr relay JT970

35A switching capability
Applicable to solar photovoltaic inverter
3.6mm contact gap
Low coil holding voltage contributes to save energy of equipment
UL insulation system: Class F available
Environmental friendly product (RoHS compliant)

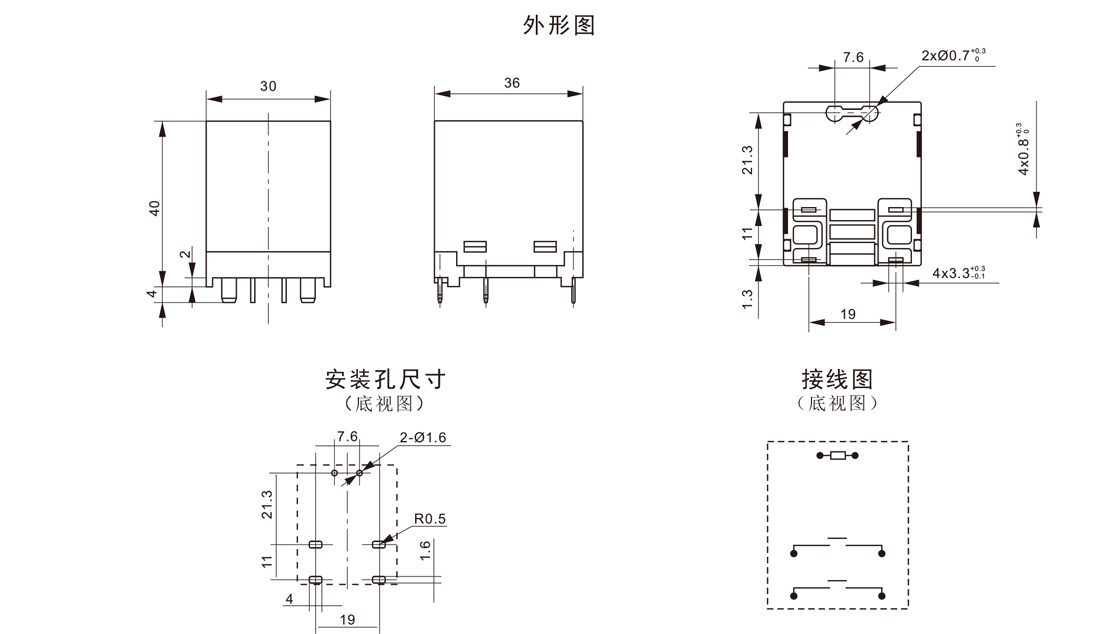

Outline Dimensions: (36.0 x 30.0 x 40.0)mm

Solid State Relay 12V JT970 Advantages

This solid state relay 12v jt970 has no moving parts, which means they are less prone to wear and tear than traditional electromechanical relays. This can lead to a longer lifespan and increased reliability.

The 12v ssr relay typically requires less power to operate than traditional relays, which can help save energy and reduce costs.

SSR relay 12v can switch on and off much faster than traditional relays, which can be useful in applications that require precise timing or high-speed control.

Unlike traditional relays, which can produce a clicking sound when they switch on and off, the solid state relay 12v operates silently.
