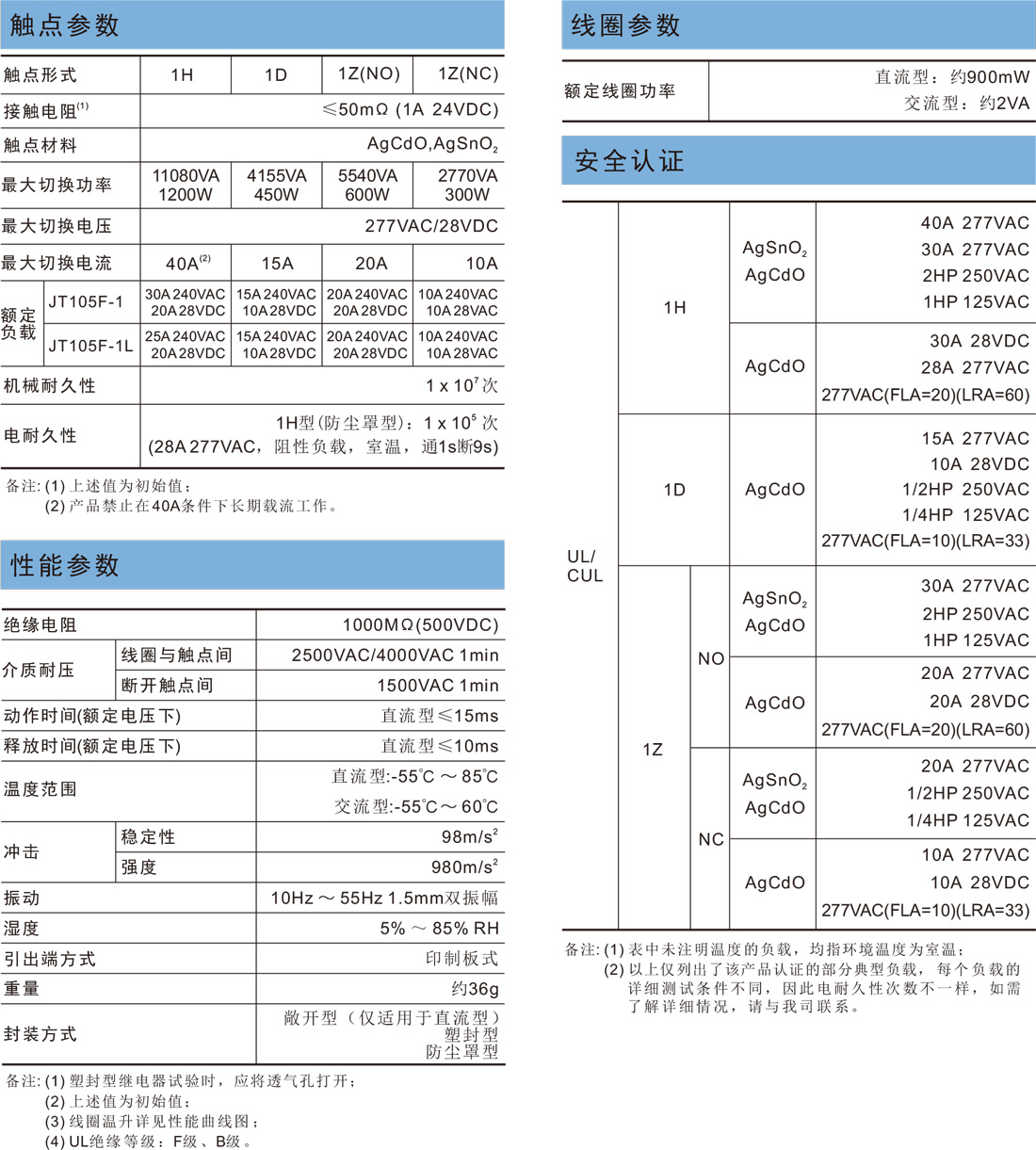

| Insulation resistance | Dielectric strength | Operate time(at nomi. volt.) | Release time(at nomi. volt.) | Ambient temperature | Shock resistance | Vibration resistance | Humidity | Termination | Unit weight | Construction | ||
| Between coil & contacts | Between open contacts | Functional | Destructive | |||||||||
| 1000M Ω (at 500VDC) | 2500VAC/4000VAC 1min | 1500VAC 1min | DC type: 15ms max. | DC type: 10ms max. | DC: -55°C to 85C AC: -55°C to 60°C | 98m/s² | 980m/s² | 10Hz to 55Hz 1.5mm DA | 5% to 85% RH | PCB | Approx. 36g | Unenclosed(Only for DC coil) Plastic sealed, Dust protected |

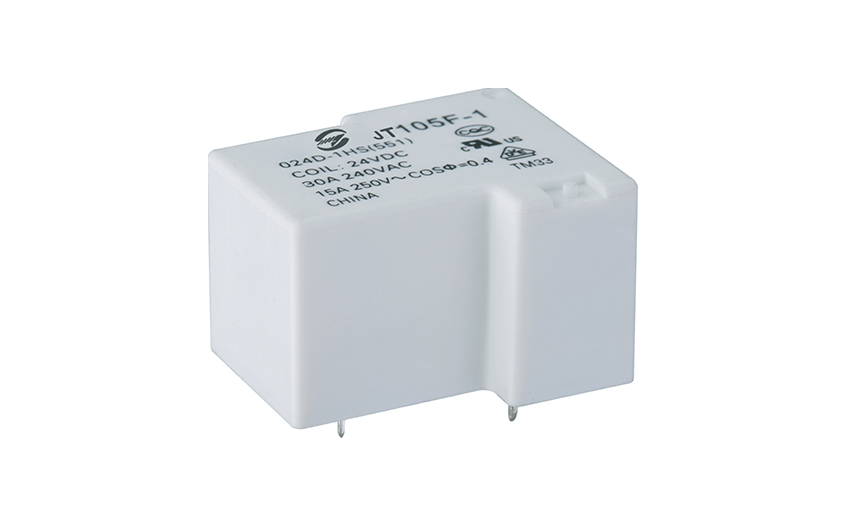

Descriptions of Miniature High Power Relay JT105F-1
40A switching capability
4kV directric strength(between coil and contacts)
Heavy load up to 7200VA
PCB coil terminals, ideal for heavy duty load
Unenclosed, Plastic sealed and dust protected types available
UL insulation system: Class F available
Environmental friendly product (RoHS compliant)

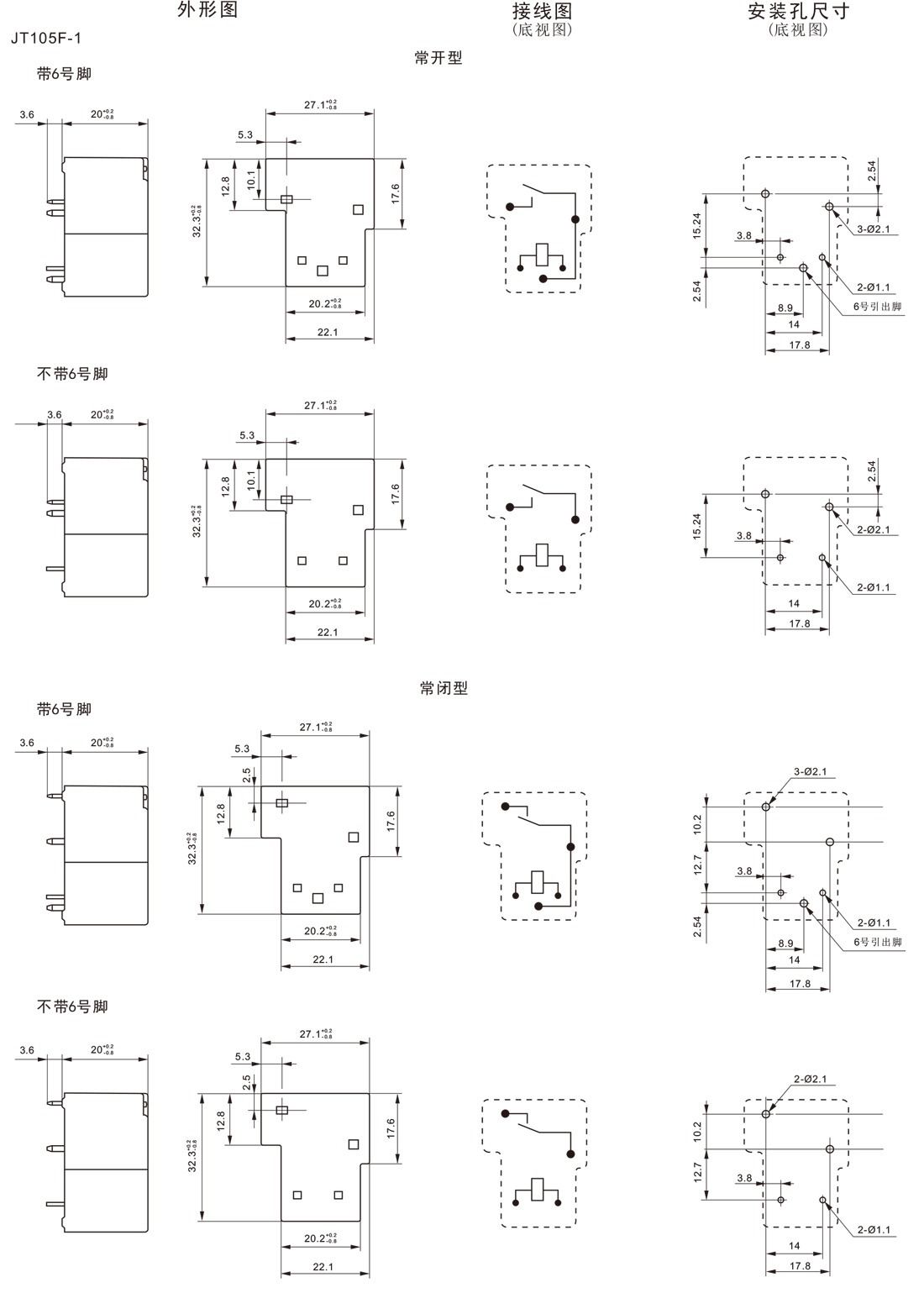

Outline Dimensions: (32.3 x 27.1 x 20.0)mm
