Miniature High Power Relay JT102F

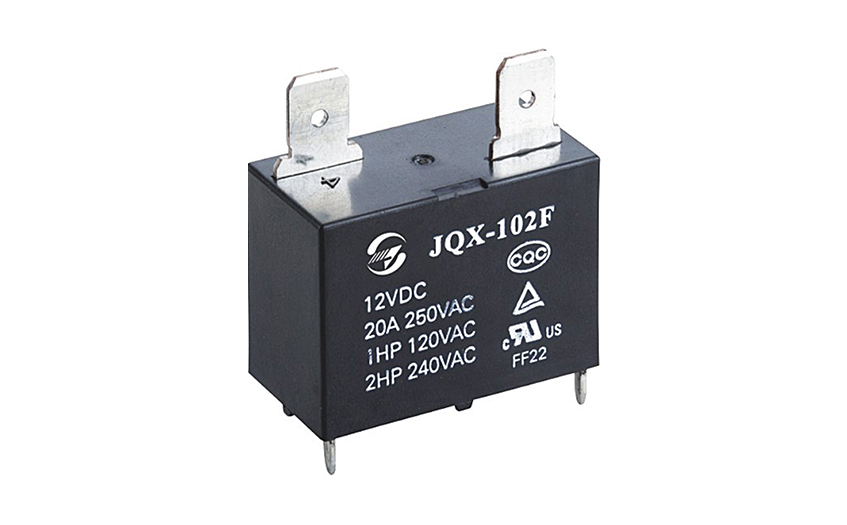

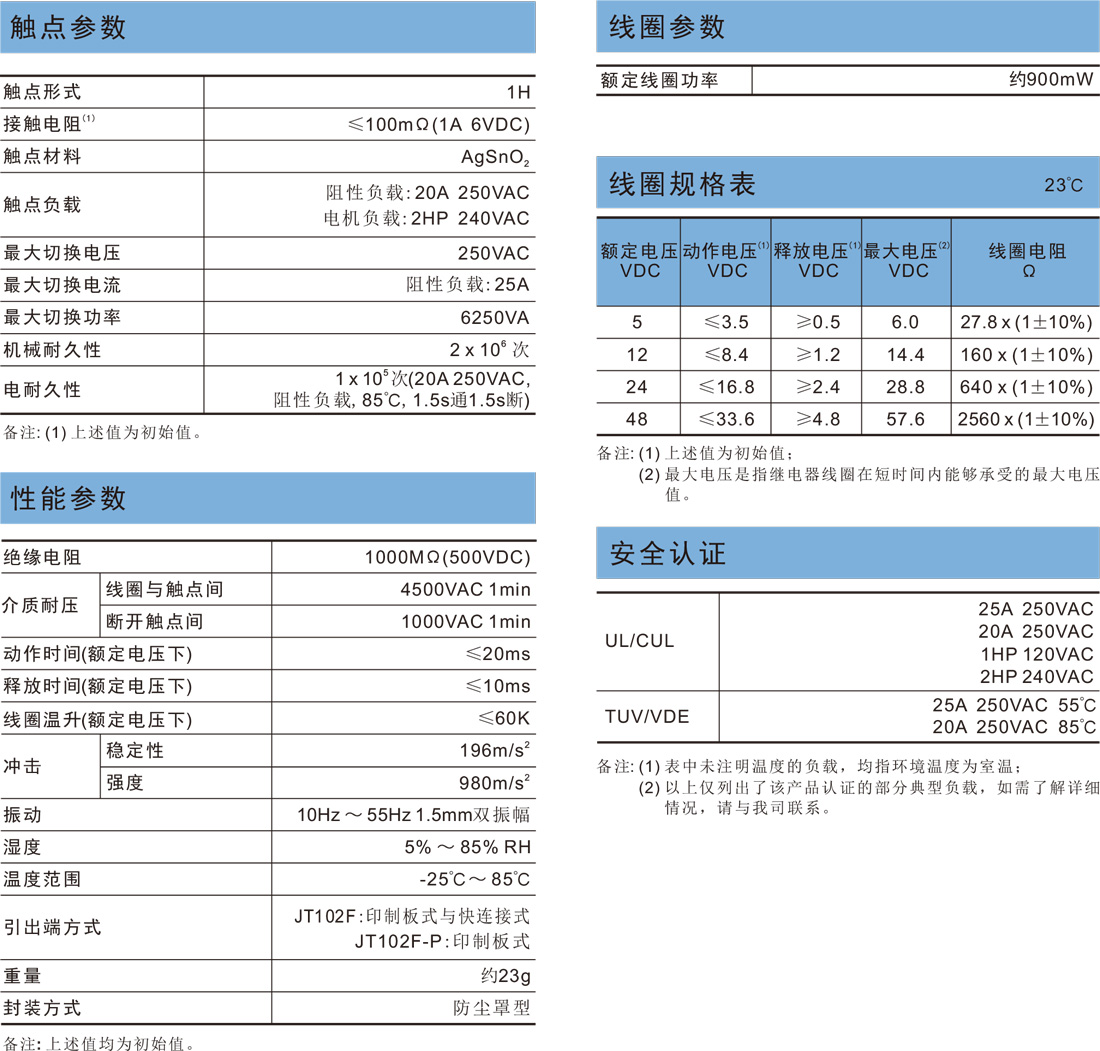

Insulation resistance

Dielectric strength

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Temperature rise(at nomi. volt.)

Shock resistance

Vibration resistance

Humidity

Ambient temperature

Termination

Unit weight

Construction

Between coil & contacts

Between open contacts

Functional

Destructive

1000M Ω (at 500VDC)

4500VAC 1min

1000VAC 1min

20ms max.

10ms max.

60K max.

196m/s²

980m/s²

10Hz to 55Hz 1.5mm DA

5% to 85% RH

-25'C to 85°C

JT102F: PCB & QC
JT102F-P: PCB

Approx. 23g

Dust protected

Contact

25A switching capability
Ideal for motor switching
Dust protected type available
PCB&QC layouts available
Environmental friendly product (RoHS compliant)

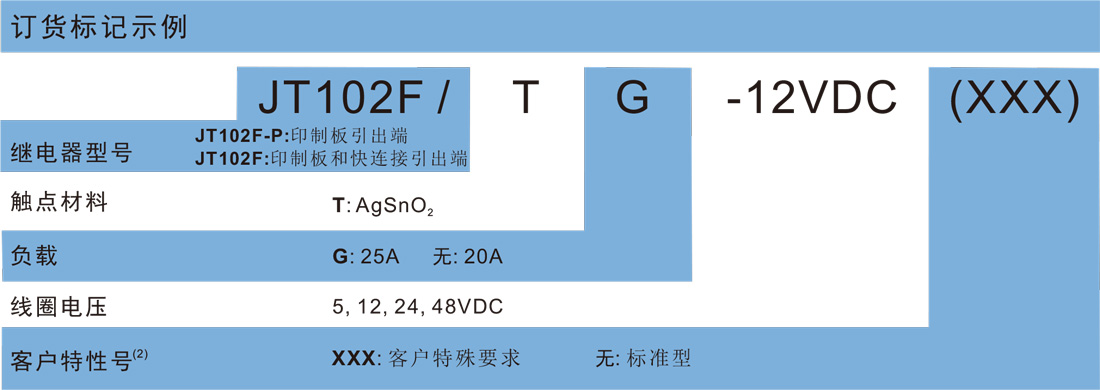

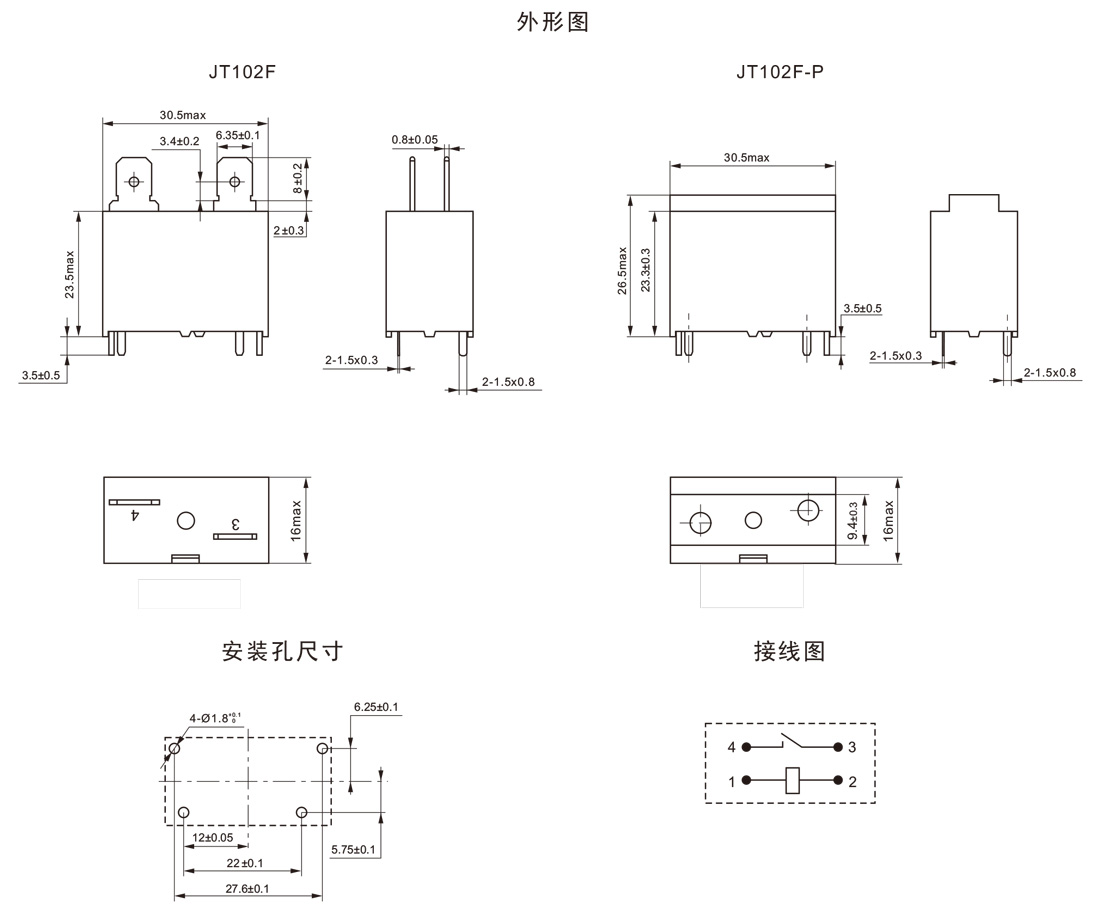

Outline Dimensions: (30.5 x 16.0 x 23.5)mm
UL insulation system: Class F

Miniature High Power Relay JT102F Advantages

High switching capacity: The JT102F relay has a high switching capacity, which means it can handle larger loads than other types of relays.

PCB mountable: The JT102F relay is designed to be mounted on a printed circuit board (PCB), which makes it easy to integrate into electronic circuits.

Sealed design: The JT102F relay has a sealed design that provides protection against dust and moisture, making it suitable for use in harsh environments.
