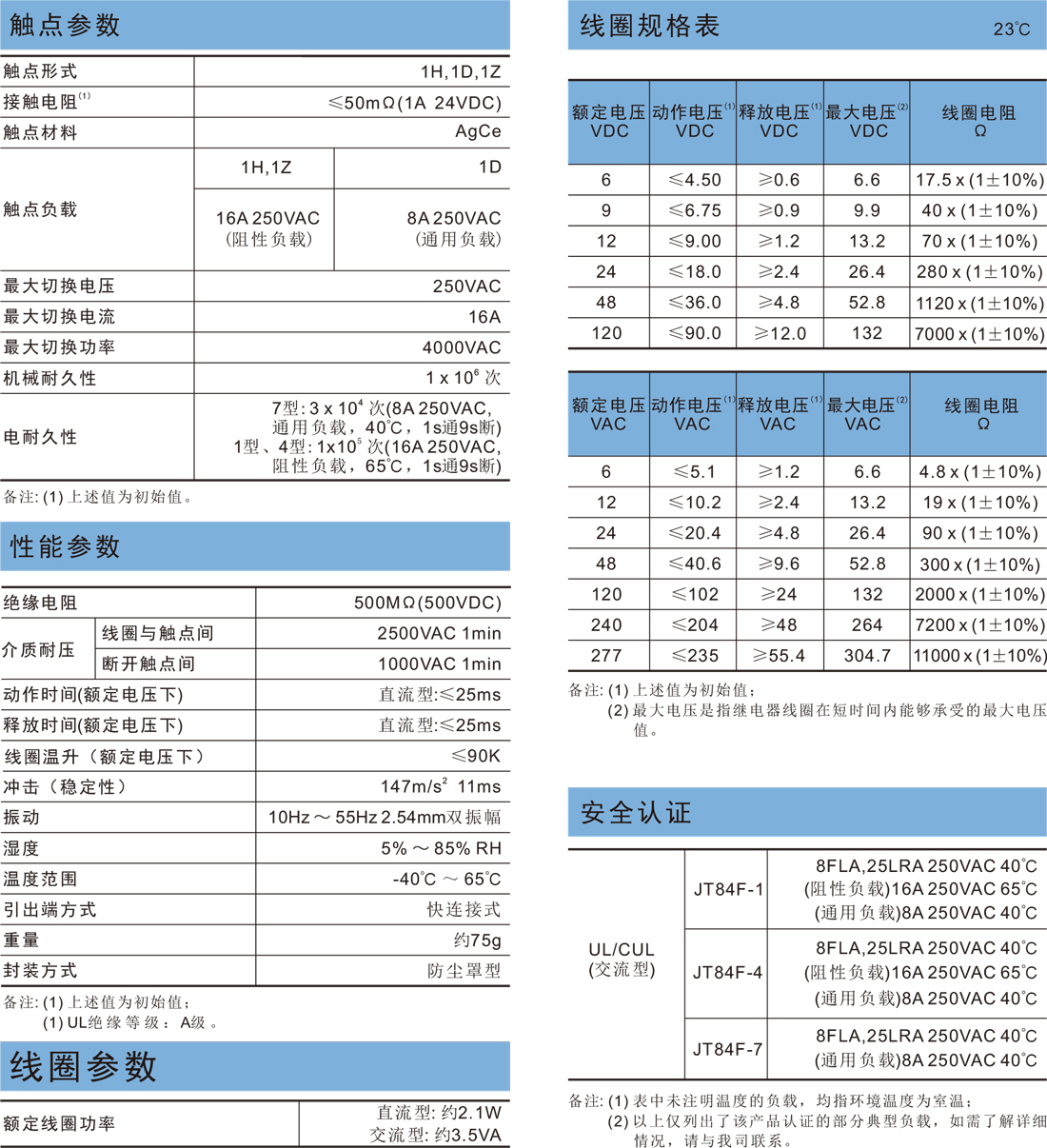

| Insulation resistance | Dielectric strength | Operate time(at nomi. volt.) | Release time(at nomi. volt.) | Temperature rise(at nomi. volt.) | Shock resistance(Functional) | Vibration resistance | Humidity | Ambient temperature | Termination | Unit weight | Construction | |
| Between coil & contacts | Between open contacts | |||||||||||
| 500M Ω (at 500VDC) | 2500VAC 1min | 1500VAC 1min | DC type: 25ms max. | DC type: 25ms max. | 90K max. | 147m/s² 11ms | 10Hz to 55Hz 2.54mm DA | 5% to 85% RH | -40℃ to 65℃ | QC | Approx. 75g | Dust protected |
16A switching capability
2.5kV dielectric strength (between coil and contacts)
Panel mount types available
Environmental friendly product (RoHS compliant)

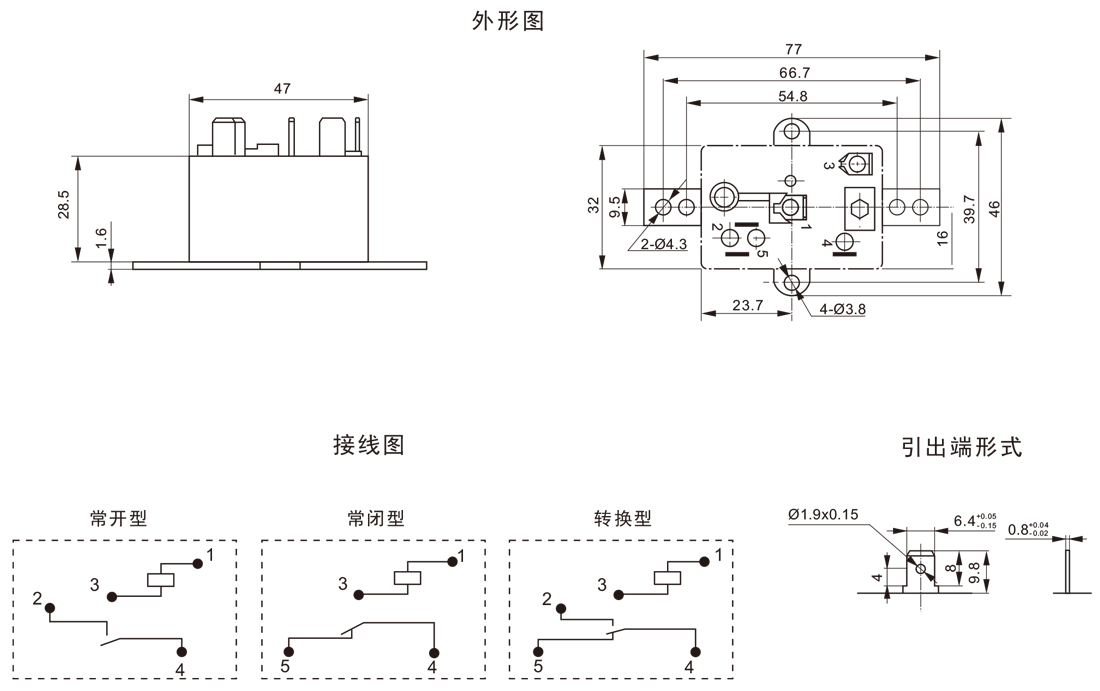

Outline Dimensions: (47.0 x 32.0 x 28.5)mm
