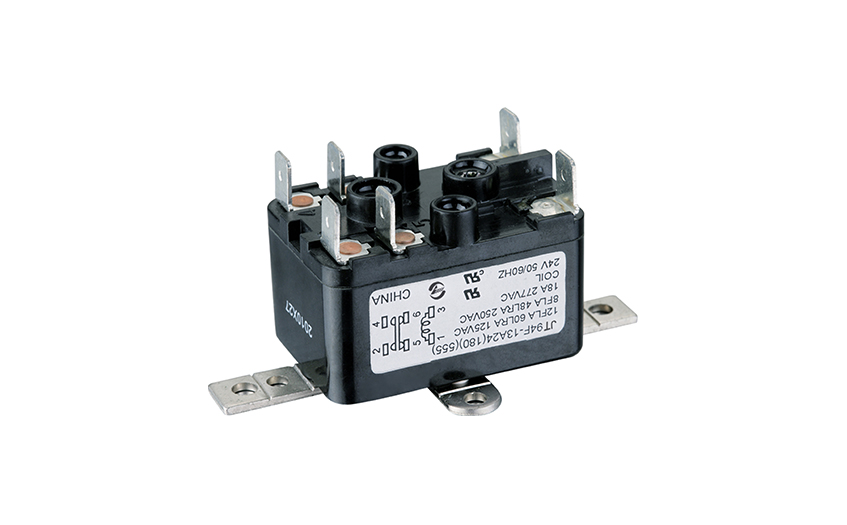

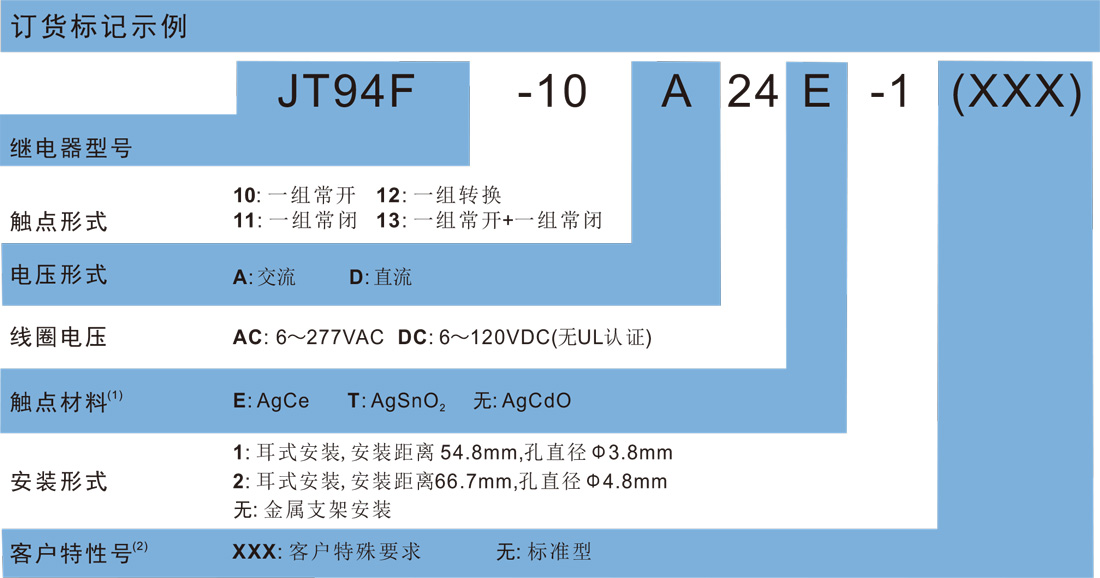

High Power Relay JT94F

Insulation resistance

Dielectric strength

Operate time(at nomi. volt.)

Release time(at nomi. volt.)

Temperature rise(at nomi. volt.)

Shock resistance(Functional)

Vibration resistance

Humidity

Ambient temperature

Termination

Unit weight

Construction

Between coil & contacts

Between open contacts

500M Ω (at 500VDC)

2500VAC 1min

1500VAC 1min

DC type: 25ms max.

90K max.

98m/s²

10Hz to 55Hz 0.5mm DA

5% to 85% RH

-40℃ to 65℃

Approx. 85g

Dust protected

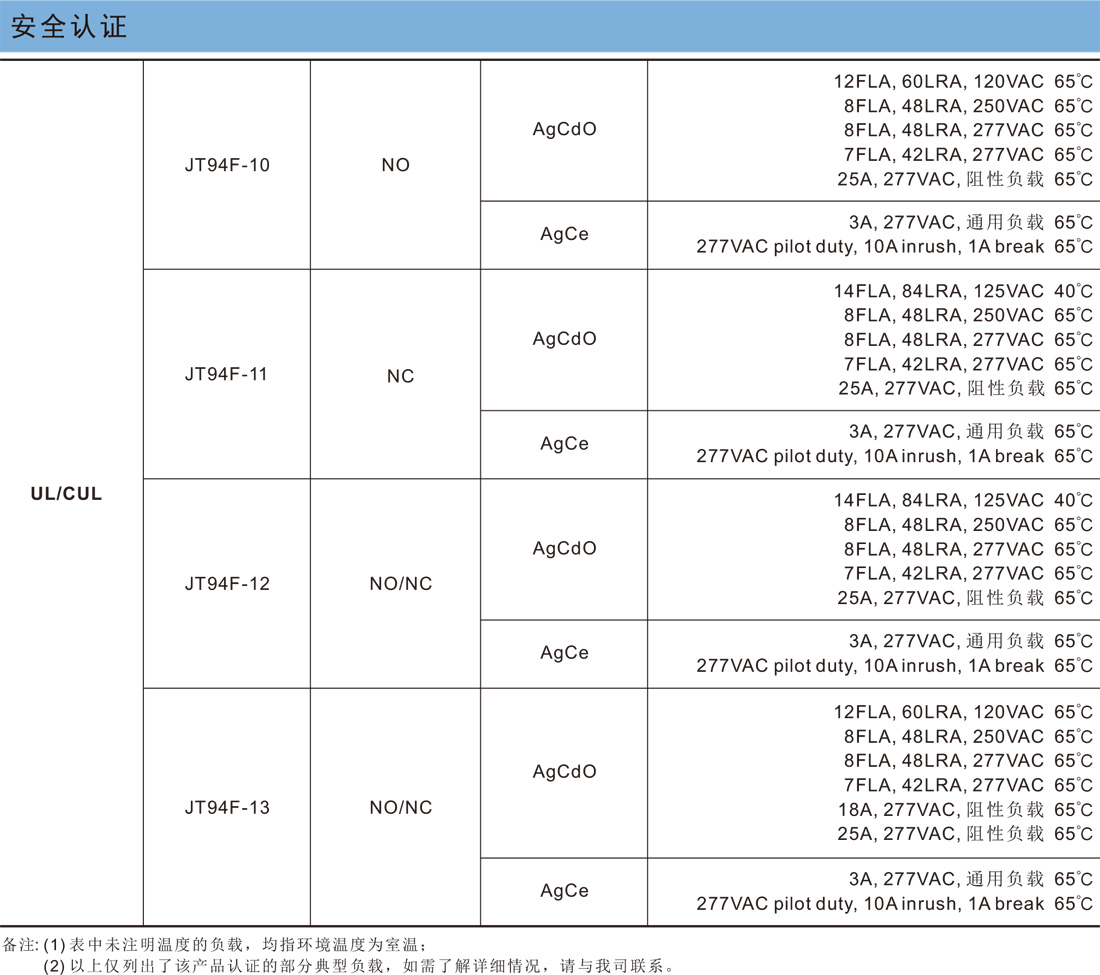

Contact

25A switching capability
2.5kV dielectric strength(between coil and contacts)
Panel mount types available
UL insulation system: Class F
Environmental friendly product (RoHS compliant)

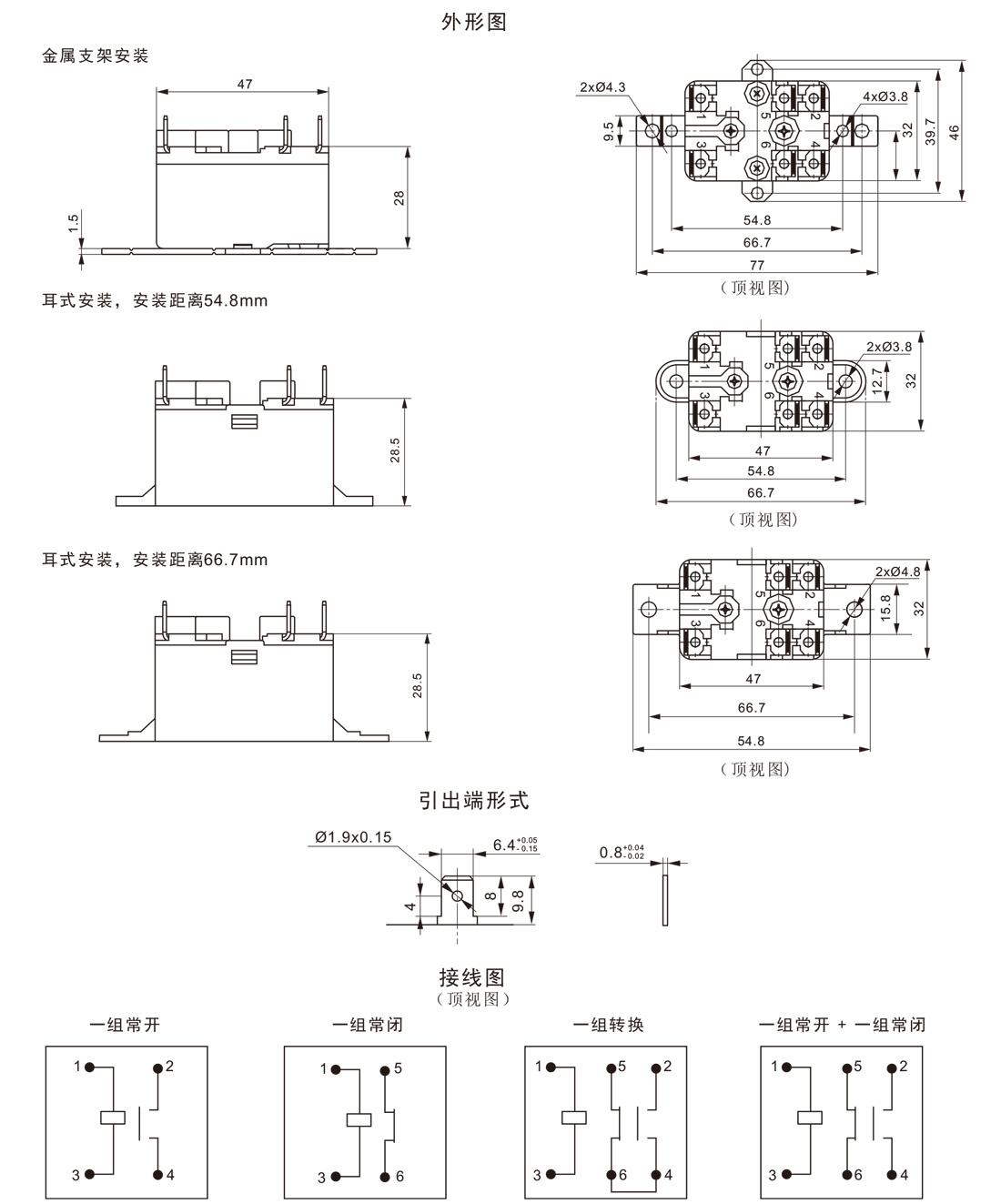

Outline Dimensions: (47.0 x 32.0 x 28.5)mm

How are high power relays tested for reliability and performance?

This test is performed to measure the resistance of the contacts when closed. The test ensures that the contacts are conducting efficiently and are not causing a voltage drop across the contacts.

This test is performed to ensure that the insulation between the contacts and the coil is sufficient to withstand high voltages. The test applies a high voltage between the contacts and the coil to check the insulation resistance.

This test is performed to determine the number of cycles the relay can withstand before failure. The test applies a specified voltage and current to the relay and cycles the relay on and off repeatedly to determine its life expectancy.
